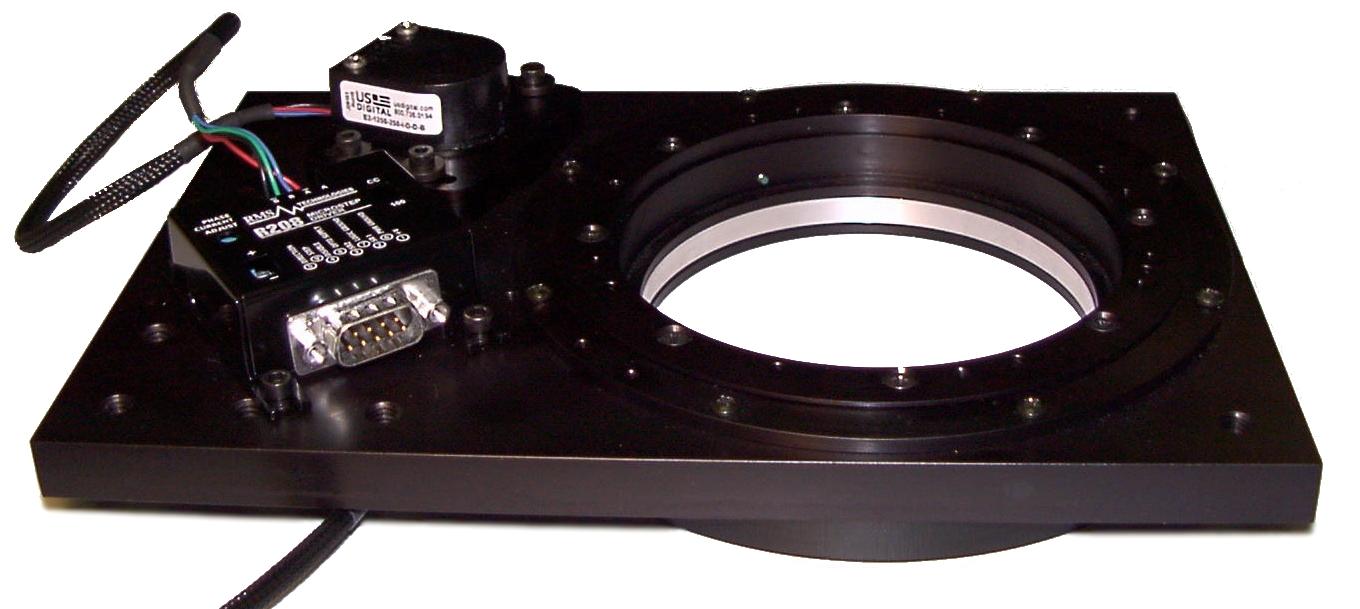

LS-100 Motorized Rotary Stage

The LS-100 motorized rotary stage is ideal for positioning and rotating 4” and 100mm diameter parts, for example Lexitek’s Turbulence Phase Plates.  It has a large clear aperture that can be used for product feed-through, laser beam or other illumination delivery, or application specific functions. The 400-step (0.9º) motor, with a 1-8X microstepping driver provides very smooth motion.  The LS-100 is guaranteed to run at 10 RPM with 40-50 RPM typical.

The optical home sensor is now recessed into the baseplate giving the stages a lower profile and a clean mounting interface.

Visit link for more information:

LS-100 Data Sheet (165K)download Acrobat

Mounting information for LS-100 and HS-100 stages is given here (22k) download Acrobat

Custom mounting rings are available.

Manuals for Lexitek products are available online. Existing customers can email us here to receive a link to product manuals.
