Motorized Rotary Stages



Lexitek Inc. offers some of the most affordable Rotary Stages with a large clear aperture. The stages come in two sizes and several speed versions. Our stages are typically stepper motor driven but can also be configured with servo motors. Lexitek resells cost-effective controllers (e.g. from Arcus) complete with all necessary cables for turnkey operation.

The stages are designed for holding large optics but can also be used for various testing and inspection applications where the large clear aperture is useful.

We offer the LS-100 and HS-100 stages for 4"/100mm optics and the LS-50 for 2"/50mm optics. Click here for more details on the LS-50.

For further information about the larger stages and controller click one of the links below.

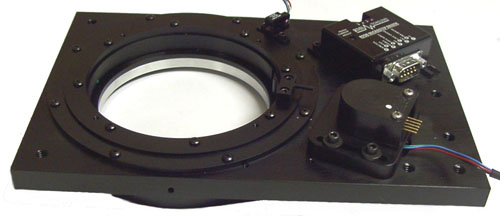

LS-100

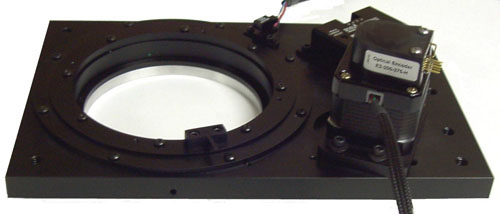

LS-100-SU

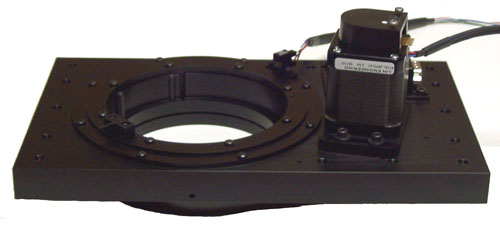

HS-100



Mounting information for LS-100 and HS-100 stages is given here (24k) download Acrobat

Software is provided for computer control of Lexitek's stepper motor controller. Sample applications and LabView™ Driver are provided that enable computer control of Lexitek motion systems. This enables users to build rotary motion systems quickly with minimal integration. Screenshots are available here.

Custom mounting rings are available.

The rotation stage can optionally be supplied in a water resistant stage configuration.

Manuals for Lexitek products are available online. Existing customers can email us here to receive a link to product manuals.


LS-100
LS-100-SU
HS-100
Degrees per Step
0.9
1.8
1.8
Gear Ratio
6:1
6:1
3:1
Motor Torque (N-m)/(oz.-in.)
0.3/4
0.32/45
0.59/83
Motor Size
Nema 14
Nema 17
Nema 17
Guaranteed Speed (RPM)
10
100
300
Typical Max. Speed (RPM)
40-50
200
450
Travel
360° Continuous 360° Continuous 360° Continuous
Stage Weight (lbs.)
3.5
4.5
5.5
Max. Part Diameter
4"/100mm
4"/100mm
4"/100mm
Clear Aperture
3.75"
3.75"
3.75"
Microsteps
1, 2, 4, 8
1, 2, 4, 8
1, 2, 4, 8
Full Steps/Rev.
2400
1200
600
Max. Microsteps/Rev.
19200
9600
4800
