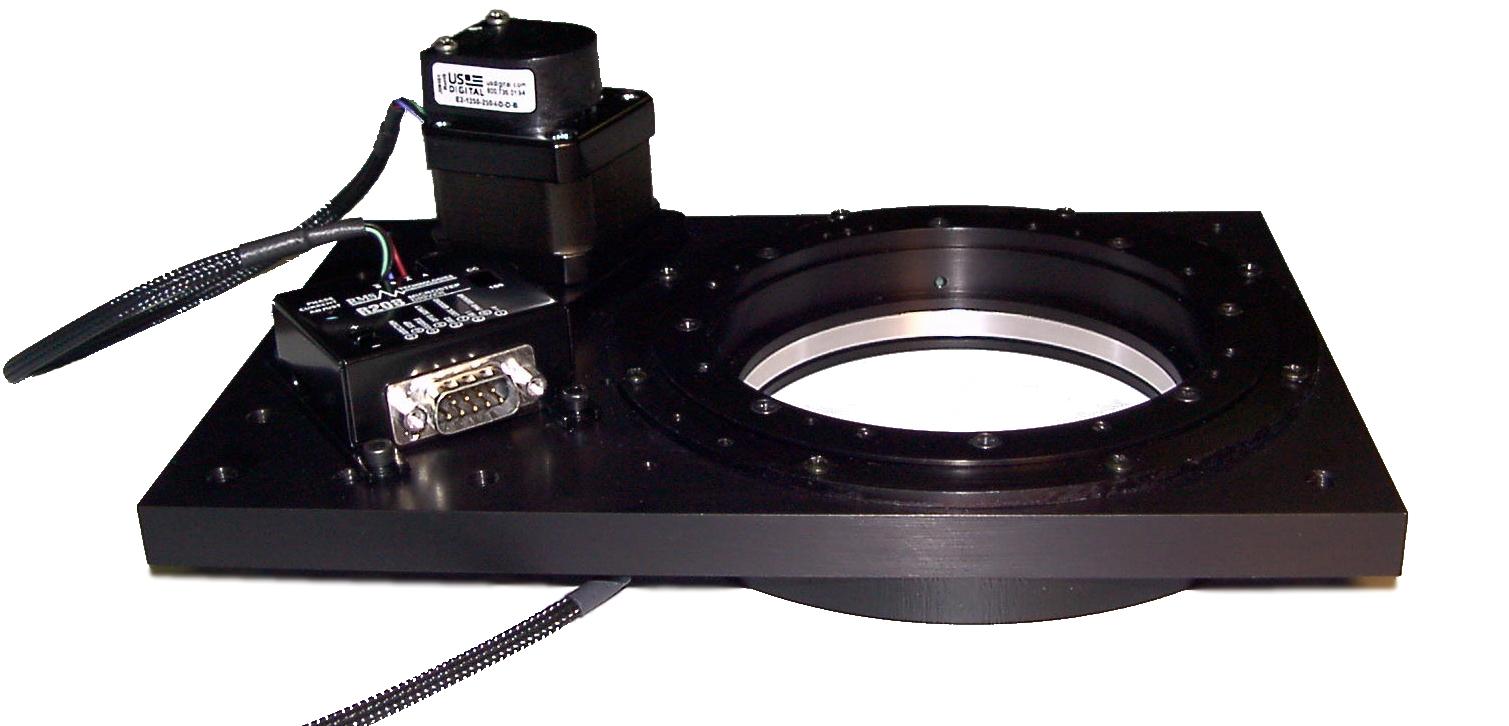

LS-100-SU Motorized Rotary Stage
The LS-100-SU motorized rotary stage is ideal for positioning and rotating 4” and 100mm diameter parts, for example, Lexitek’s Turbulence Phase Plates. It has a large clear aperture that can be used for product feed-through, laser beam or other illumination delivery, or application-specific functions. The 400-step (0.9º) motor, with a 1-8X microstepping driver for very smooth motion. The LS-100-SU is guaranteed to run at 100 RPM with 200 RPM typical.
The optical home sensor is now recessed into the baseplate giving the stages a lower profile and a clean mounting interface.
Visit link for more information:
LS-100-Rotator Data Sheet (165K)
Mounting information for LS-100 and HS-100 stages is given here (22k)
Custom mounting rings available.
Manuals for Lexitek products are available online. Existing customers can email us here to receive a link to product manuals.
